Marc Arnold

St. Peters, MO




Photos
(click for larger versions)






Combination


Make: Ford
Model Year: 1993 Mustang Cobra
Weight: 2950 lbs

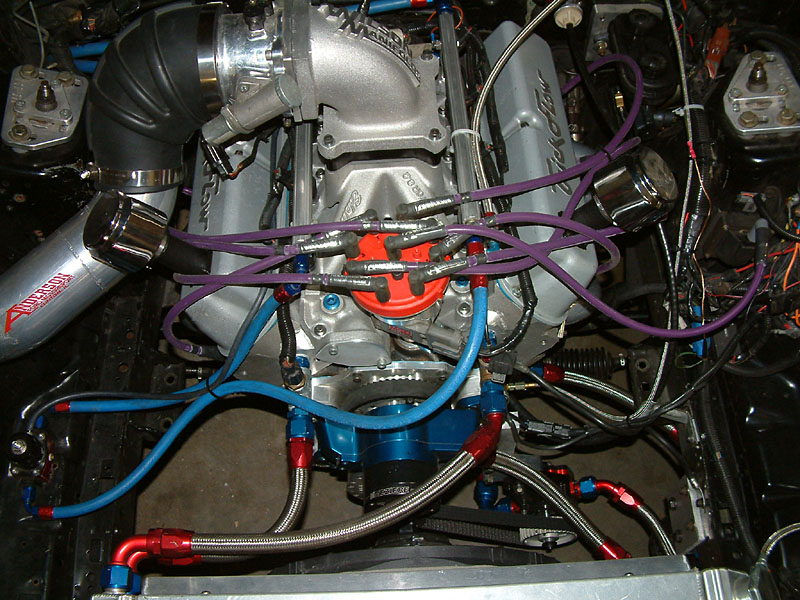

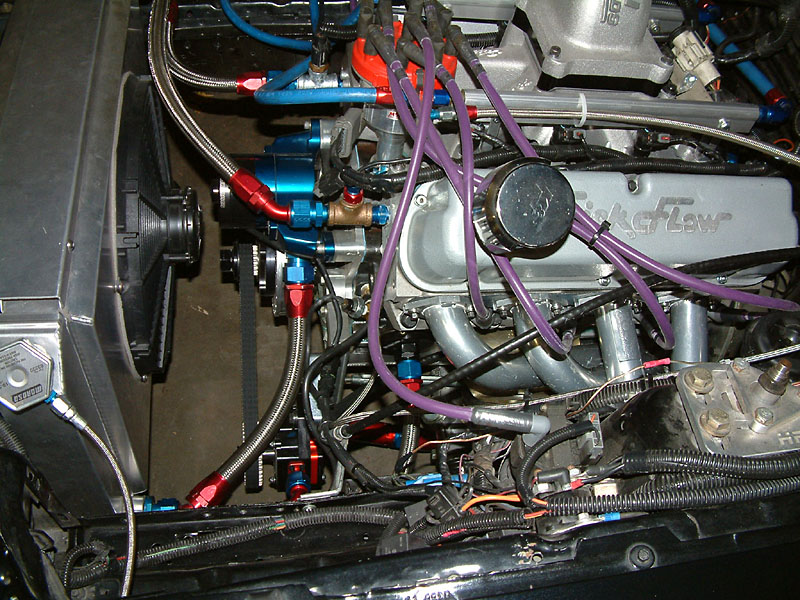

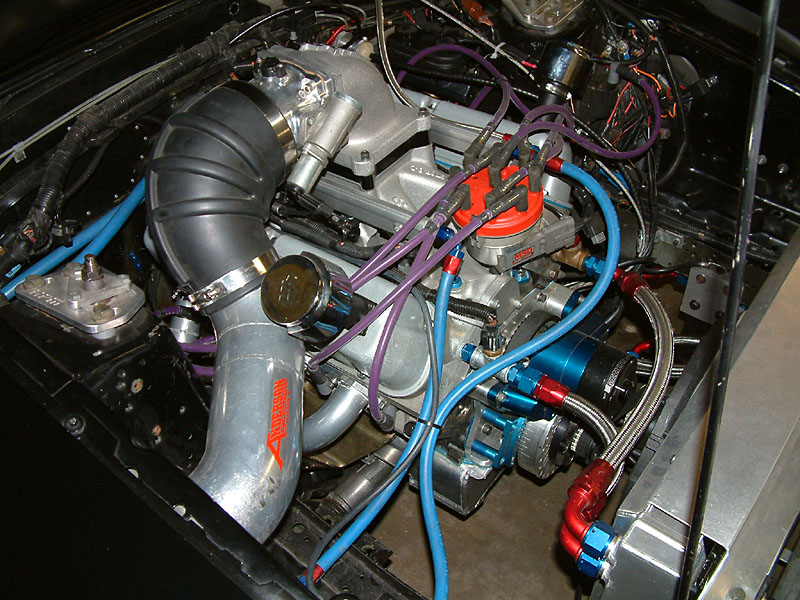

CID: 359, 14.3:1 Compression
TB Intake: 105mm Accufab, Kuntz & Co. Super Victor EFI
Power Pipe: AFM AF-0112c 4"
Heads: Kuntz & Co. TFS-R
Block: R302
Cam Rockers: AFM AF-N113HLSP Hi-Rev Hydraulic 1.6 T&D Shaft
MAF: Pro-M 80mm shorty
Fuel Rails: Edelbrock
Pump: Aeromotive A1000
Fuel Type: Race
Injectors: Delphi 42lb/hr
Headers: Kooks 1-7/8" - to - 2.0" Stepped, 3-1/2" Collector
Mid Pipes: none
Exhaust: 3-1/2" Bullets
Computer: AFM Programmable Management System
Ignition: Mallory Hi-Fire VIIS & Promaster Coil
Transmission: Pro Motion built TKO Liberty Face-Plate, 2.92 1st gear
Clutch: AFM Hi-Rev Stg 3 Clutch, Aluminum Flywheel
Power Adder: not
Rear End: Ford 8.8" with Moser 33spline axles, Moser spool, T/A rearend girdle

Front Susp: D&D K-member, Tubular A-Arms, Coil-Overs, Strange Single Adjustable Struts

Rear Susp: 4-Cyl Springs, AFCO Double-Adjustable Shocks, HPM Mega Bite Sr Lowers,
HPM Double-Adjustable Uppers & Anti-Roll Bar

Other: Marc just got his new combo running at the end of the season. He is looking forward
to getting some quicker passes in the spring of '07.

ET: 9.595 @ 142.29 mph
60ft: 1.384

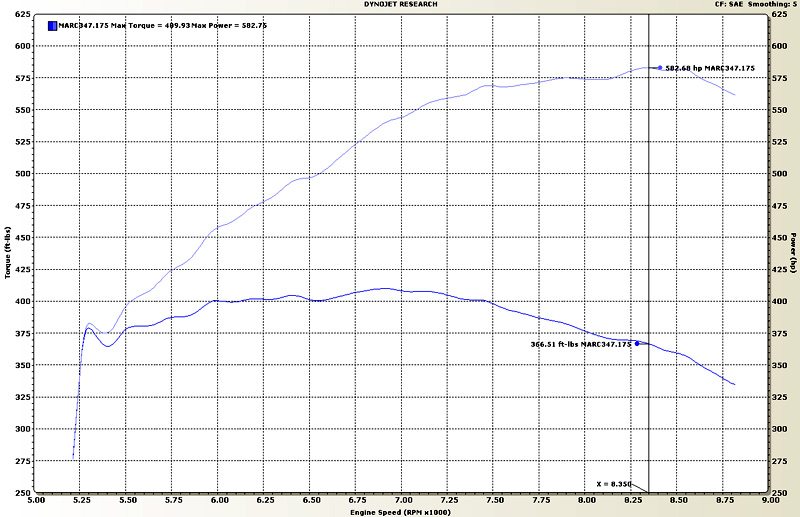

Dyno Results
